Mounting System for Pitched Roofs SRS-S

Technical Specifications

Type of mounting system	SRS-S
Tilt angle of the PV array	in the range of 15 ° – 60 °
Location of the solar power plant	Portrait or landscape
Roof pitch angle	Up to 60°
Mounting to the roof	Anchor
Warranty	10 years
Service life	25 years

Solar panel mounting system for pitched roofs SRS-S by SolarSK

Mounting system SRS-S

Installation of solar panels for a roof at an angle is carried out parallel to the plane of the roof itself, and it is also possible to raise the angle to the design one.

Roofing types for SRS for sloping roofs: bituminous, metal and ceramic tiles, corrugated board, slate, roofing material.

The design of roof mounting systems for angled roofs is carried out taking into account all the requirements for PV installation.

This system consists of a set of load-bearing profiles, PV clamping elements, and fasteners that connect the profiles to the rafter structure or roof.

Advantages of SOLARsk Systems

Quick and easy installation

Complete set

Compliance with construction standards

10 years warranty

Anti-corrosion coating

Structural steel

Design according to European standards

Precise engineering calculations are separate for each roof

Requirements for the design process

Components of the SRS-S System

Mounting for pitched roofs covered with seam sheet

Guide profile:

З 41х41х10х1.5 / С 41х72х10х2, L = 2200/3400/4200/5200 / 6200.
Connecting element U35х25.
Screw M10x30 cylindrical with internal hexagon.
Flat washer, M10.
Toothed nut with shoulder, M10.

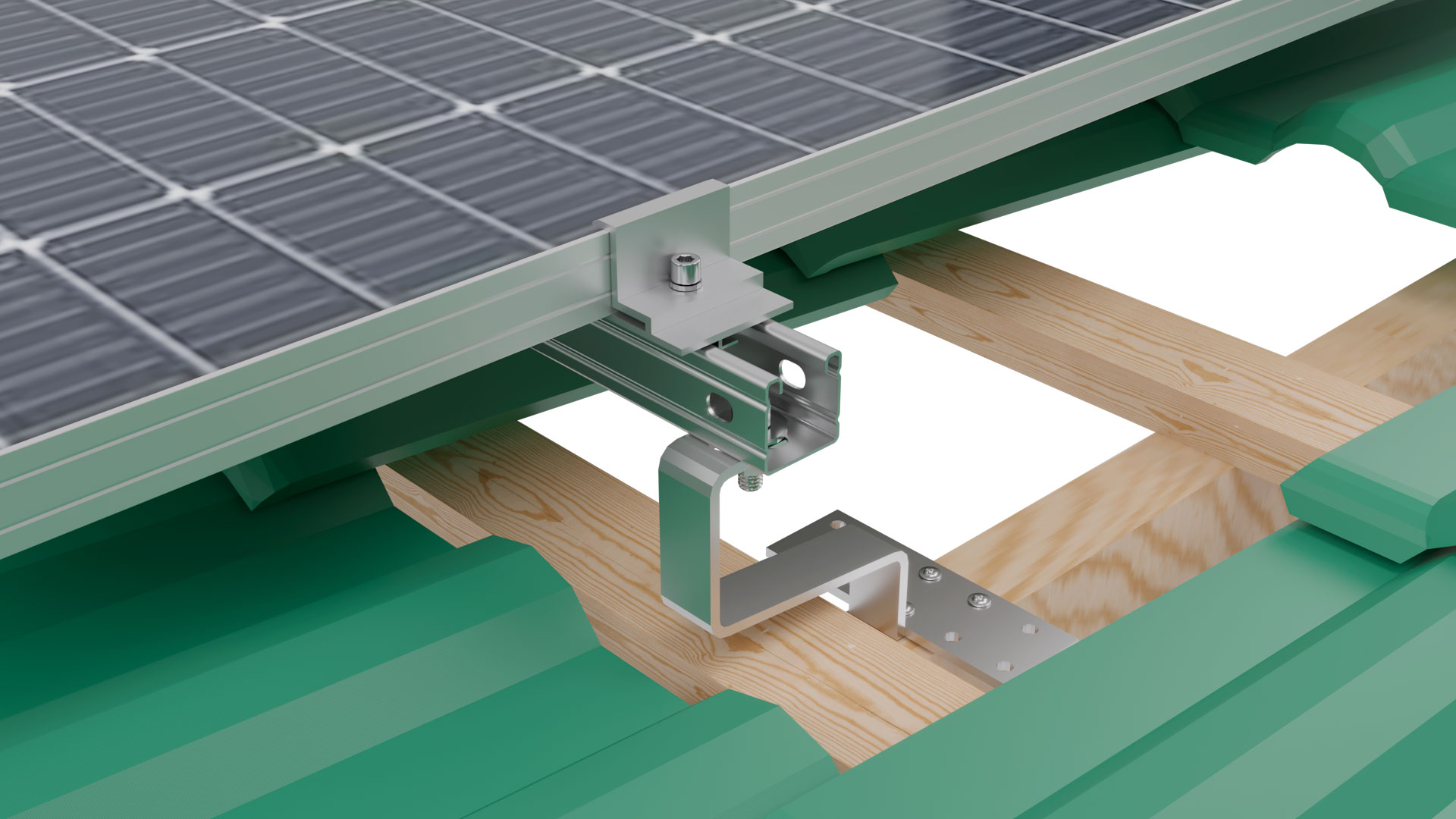

Mounting for Tile Roof

Mounteners for tile roofing:

Horizontal bracket with a reverse or large heel.
Screw M10x30 cylindrical with internal hexagon.
Flat washer, M10.
Toothed nut with shoulder, M10
Universal wood screw, M6x45.

Еnd and middle clamps for PV modules in the SRS-S Mounting System

Еnd and middle clamps for PV modules in the Mounting System SRS-S

Edge and inter-panel mounting of PV modules:

End fastening, mid fastening
Module frame: 30, 35; 40; 45; 50.
Insulating aluminum plate.
Screw M8x30 cylindrical with internal hexagon.
Special nut 18×37 for profile, M8.
Engraver washer, M8.

Mounting for Metal Roofing

Mounteners for roofing made of metal tiles, profiled sheets, slate and other sheet materials:

Stud set: M10x200 screw,
Toothed nut with shoulder, M10.
Insulating washer EPDM, M9.

Design datasheet
