Mounting System for Flat Roofs SRS-102 EW East-West

Technical Specifications

Type of mounting system	SRS-102 EW
Tilt angle of the PV array	Up to 20 °

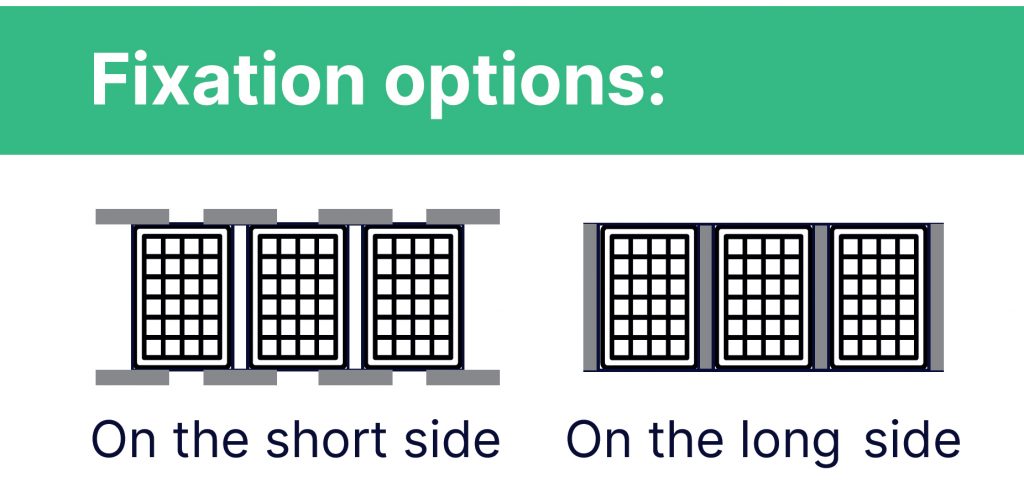

Location of the solar power plant	Portrait or landscape
Roof pitch angle	Up to 10 °
Mounting to the roof	Anchor or ballast
Warranty	10 years
Service life	25 years

Bidirectional roof mounting system SRS-102 EW by SolarSK

Mounting system SRS-102 EW

✓ Less metal consumption and simpler logistics.

✓ No need for additional components.

✓ Reliable system with a high degree of resilience

Advantages of SOLARsk systems

Quick and easy installation

Complete set

Compliance with construction standards

10 years warranty

Anti-corrosion coating

Structural steel

Design according to European standards

Precise engineering calculations are separate for each Dahopean standard

Requirements for the design process

Components of the SRS-102 EW East-West System

SRS-102 EW Mounting System

Brackets:

Brackets in the SRS-102 EW Mounting System

Design datasheet
